Services · Core Processing
Extraction
In our production plants, we use three-layer process tanks made of 316L steel (1.4404) for the extraction of active substances from botanical raw materials. The extraction zone is designed to work with ethanol solutions and comply with the ATEX directive.

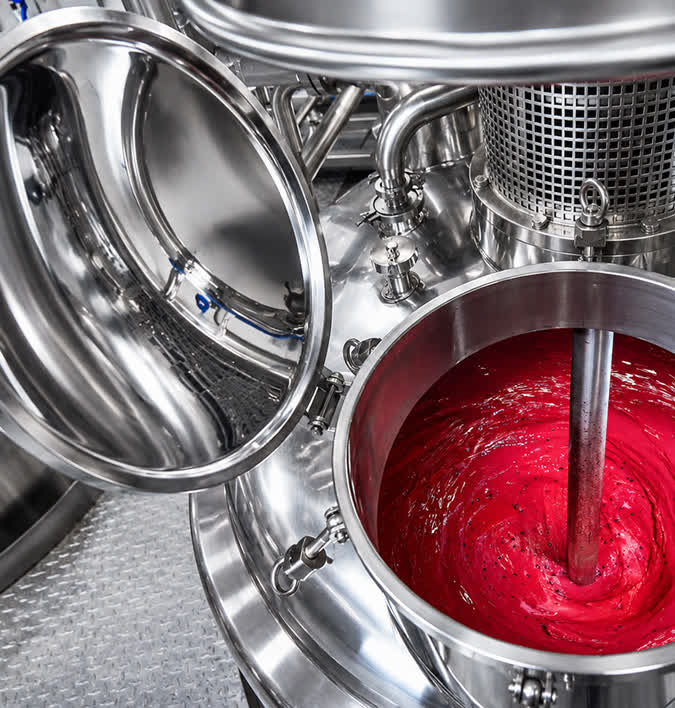

Process tanks made of 316L steel
-
2
Extractors with a capacity of 6m³
- equipped with agitator (115 rpm.)
-
2
Extractors with a capacity of 2m³
- equipped with agitator (100 rpm.)
-
2
Extractors with a capacity of 2m³
Extraction process capabilities
The extraction process is supported by controlled solvent preparation, temperature control, percolation and water/ethanol process parameters.
- 1 Possibility of working with bottom sieve or decanter
- 2 Automatized control of water/ethanol parameters during solvent preparation for extraction (volume, temperature, pH, ethanol concentration);
- 3 Controlled and constant temperature during the extraction process, thanks to the heating jacket cooperating with the PID regulator;
- 4 Possibility of extraction at 20-90°C, with recirculation of condensated vapors and through the oil separator;
- 5 Percolation with flow of 5-30m³/h
- 6 Osmotic water used for extraction with a conductivity of <10 µS/cm
- 7 Possibility of extraction with 10-80% (v/v) ethanol solutions
